b2000::Domain Class Reference

#include "b2domain.H"

Inheritance diagram for b2000::Domain:

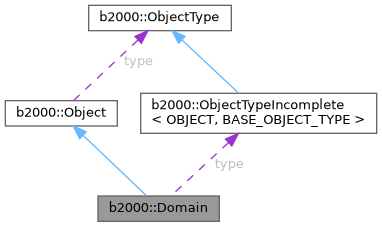

Collaboration diagram for b2000::Domain:

Classes
struct	AdjacentElement
class	ElementIterator
class	NodeIterator

Initialization
virtual void	set_model (Model &model)=0
virtual void	set_case (Case &case_)=0
virtual void	set_subcase_id (const int subcase_id_)=0

General information
virtual size_t	get_number_of_dof () const =0
virtual size_t	get_number_of_elements () const =0
virtual size_t	get_number_of_elements_and_subelements () const =0
virtual size_t	get_number_of_nodes () const =0
virtual const std::vector< Element::VariableInfo >	get_value_info () const =0
virtual b2linalg::SparseMatrixConnectivityType	get_dof_connectivity_type () const =0
virtual bool	have_temperature () const =0

Nodes and elements
virtual node_iterator	get_node_iterator ()=0
template<typename T >
const T *	get_node_local_referential (const Node &node) const
virtual const double *	get_node_local_referential_double (const Node &node) const =0
virtual const b2000::csda< double > *	get_node_local_referential_csda (const Node &node) const =0
virtual Node *	get_node (const std::string &node_name)
virtual void	get_slave_node (std::vector< std::pair< const Node *, const Node * > > &slave_node)=0
virtual element_iterator	get_element_iterator ()=0
virtual Element *	get_element (const std::string &element_name)

Adjacent and neighbouring elements
virtual void	get_adjacent_elements (const Node *node, std::vector< AdjacentElement > &adjacent_elements)
virtual void	get_adjacent_elements (std::pair< int, const Node *const * > node_list, std::vector< AdjacentElement > &adjacent_elements)=0
virtual void	get_elements_of_same_type_near (const Element *e, double dist, std::vector< Element * > &element_list)=0

Restart
To implement re-start of an FE analysis, in addition to the solution vector, the state of the FE domain must be saved in the preceding analysis and re-loaded upon re-start. The state of an FE domain comprises the states of all path-dependent Element and ElementProperty instances. To allow the saving of and re-starting from different states, the states are distinguished by their ID.
virtual void	save_state (const std::string &state_id)=0
virtual void	load_state (const std::string &state_id)=0
virtual void	save_field (const std::string &name_id, const b2linalg::Vector< double, b2linalg::Vdense_constref > &dof)=0
virtual void	save_field (const std::string &name_id, const b2linalg::Vector< b2000::csda< double >, b2linalg::Vdense_constref > &dof)=0
virtual void	save_field (const std::string &name_id, const b2linalg::Vector< std::complex< double >, b2linalg::Vdense_constref > &dof)=0

Multiscale analysis
Functions used in multiscale analysis where a (local) domain overlaps with a parent (global) domain.
virtual Element *	get_parent_element_and_nodes_mapping (Domain &parent_domain, const Element &element, b2linalg::Matrix< double > &parent_nodes_internal_coor)
virtual Element *	get_parent_element_mapping (Domain &parent_domain, const Node &node, b2linalg::Vector< double > &parent_internal_coor)
std::vector< std::reference_wrapper< Element > > &	GetElementContainer ()
	Return private member domain_element_container_ holding all elements of this domain.
void	FillElementContainer ()
	Fill domain_element_container_ with all elements of this domain.

Additional Inherited Members
Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const
virtual	~Object ()
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

Interface for C++ representations of a domain that is discretized by Finite Elements.

The Domain instance is created and owned by the Model instance. The number of functions of the Domain interface is quite large, but many of the functions are specific to certain kinds of analyses like adaptive refinement or contact analysis. The minimum functionality that a Domain class must provide in order to work in conjunction with a Solver instance is:

• A forward iterator on the Node instances to compute and initialize the global degree-of-freedom numbering.
• A forward iterator on the Element instances to assemble the first and/or the second variation.
• A function to get the linear dependencies between the degrees-of-freedom.

Member Function Documentation

FillElementContainer()

void b2000::Domain::FillElementContainer ( )

inline

Fill domain_element_container_ with all elements of this domain.

Note

Elements are stored using std::cref (std::reference_wrapper)

get_adjacent_elements() [1/2]

virtual void b2000::Domain::get_adjacent_elements ( const Node *  node, std::vector< AdjacentElement > &  adjacent_elements  )

inlinevirtual

Get the list of elements that are adjacent to a node.

Parameters

node	A pointer to a Node instance (input).
adjacent_elements	A vector of containing information on adjacent elements. Each entry corresponds to one Element.

get_adjacent_elements() [2/2]

virtual void b2000::Domain::get_adjacent_elements ( std::pair< int, const Node *const * >  node_list, std::vector< AdjacentElement > &  adjacent_elements  )

pure virtual

Get the list of elements that are adjacent to all the Node instances given as argument.

Parameters

node_list	A pair (first, second) with first being the number of nodes and second a pointer to an array of Node pointers (input).
adjacent_elements	A vector of containing information on adjacent elements. Each entry corresponds to one Element.

The AdjacentElement::internal_node_id_list contains the node-internal ID's of the nodes given in node_list that

Implemented in b2000::b2dbv3::Domain.

get_dof_connectivity_type()

virtual b2linalg::SparseMatrixConnectivityType b2000::Domain::get_dof_connectivity_type ( ) const

pure virtual

Returns

The type of connectivity of FE elements present in the domain (1D, 2D, 3D, etc.). This function is called by the Solver instance (for the sparse matrix solver). Depending on this value, the Solver decides what graph partitioning algorithm to use for the symbolic factorization.

Implemented in b2000::b2dbv3::Domain.

get_element()

b2000::Element * b2000::Domain::get_element ( const std::string &  element_name )

virtual

Returns

A pointer to the Element instance with Element::get_object_name() == element_name, or 0 if such a Element instance does not exist.

Note

The computational cost of this operation can be O(n) where n is the number of elements in the FE domain.

Reimplemented in b2000::b2dbv3::Domain.

get_element_iterator()

virtual element_iterator b2000::Domain::get_element_iterator ( )

pure virtual

Returns

A std::unique_ptr to ElementIterator to iterate over all elements of the domain.

Implemented in b2000::b2dbv3::Domain.

get_elements_of_same_type_near()

virtual void b2000::Domain::get_elements_of_same_type_near ( const Element *  e, double  dist, std::vector< Element * > &  element_list  )

pure virtual

Get the list of elements near a given element and of the same type. This function is useful e.g. for contact overlay elements.

Parameters

e	A pointer to the Element instance (input).
dist	The maximum search distance (input).
element_list	A vector of pointers to Element instances (output).

The list of returned elements contains all elements of the same type as Element e, and for with the distance with e is less or equal dist. The list may also contain some elements whose distance to e is slightly larger than dist.

Implemented in b2000::b2dbv3::Domain.

get_node()

b2000::Node * b2000::Domain::get_node ( const std::string &  node_name )

virtual

Returns

A pointer to the Node instance with Node::get_object_name() == node_name, or 0 if such a Node instance does not exist.

Note

The computational cost of this operation can be O(n) where n is the number of nodes in the FE domain.

Reimplemented in b2000::b2dbv3::Domain.

get_node_iterator()

virtual node_iterator b2000::Domain::get_node_iterator ( )

pure virtual

Return a std::unique_ptr to NodeIterator to iterate over all nodes of the FE domain.

Implemented in b2000::b2dbv3::Domain.

get_node_local_referential()

template<typename T >

const T * b2000::Domain::get_node_local_referential ( const Node &  node ) const

inline

This function is utilized by elements etc. to obtain node-local reference frames (coordinate systems).

Returns

A pointer to an array containing the 3 base vector, arranged in column-major format, and defined in the global reference frame. If no local reference frame is defined for that node, 0 is returned.

get_node_local_referential_csda()

virtual const b2000::csda< double > * b2000::Domain::get_node_local_referential_csda ( const Node &  node ) const

pure virtual

Must be overwritten by implementations of Domain.

Implemented in b2000::b2dbv3::Domain.

get_node_local_referential_double()

virtual const double * b2000::Domain::get_node_local_referential_double ( const Node &  node ) const

pure virtual

Must be overwritten by implementations of Domain.

Implemented in b2000::b2dbv3::Domain.

get_number_of_dof()

virtual size_t b2000::Domain::get_number_of_dof ( ) const

pure virtual

Returns

The number of degrees-of-freedom in the domain.

Implemented in b2000::b2dbv3::Domain.

get_number_of_elements()

virtual size_t b2000::Domain::get_number_of_elements ( ) const

pure virtual

Returns

The number of elements in the domain.

Implemented in b2000::b2dbv3::Domain.

get_number_of_elements_and_subelements()

virtual size_t b2000::Domain::get_number_of_elements_and_subelements ( ) const

pure virtual

Returns

The number of elements in the domain plus the numbers of their subelements (if any).

Implemented in b2000::b2dbv3::Domain.

get_number_of_nodes()

virtual size_t b2000::Domain::get_number_of_nodes ( ) const

pure virtual

Returns

The number of nodes in the domain.

Implemented in b2000::b2dbv3::Domain.

get_parent_element_and_nodes_mapping()

virtual Element * b2000::Domain::get_parent_element_and_nodes_mapping ( Domain &  parent_domain, const Element &  element, b2linalg::Matrix< double > &  parent_nodes_internal_coor  )

inlinevirtual

Get the Element of the parent domain containing an element belonging to this domain (the local domain).

Parameters

parent_domain	The parent domain to search.
element	The Element instance of the this domain (= the local element).
parent_nodes_internal_coor	The element-internal coordinates of the local element inside the parent element.

Returns

A pointer to the parent Element of the parent Domain or 0, if no parent element exists.

Reimplemented in b2000::b2dbv3::Domain.

get_parent_element_mapping()

virtual Element * b2000::Domain::get_parent_element_mapping ( Domain &  parent_domain, const Node &  node, b2linalg::Vector< double > &  parent_internal_coor  )

inlinevirtual

Get the first Element of the parent domain containing a node belonging to this domain (the local domain.

Parameters

parent_domain	The parent domain to search.
parent_domain	The parent domain to search.
node	The Node instance of the this domain (= the local node).
parent_internal_coor	The element-internal coordinates of the local node inside the parent element.

Returns

A pointer to the parent Element of the parent Domain or 0, if no parent element exists.

Reimplemented in b2000::b2dbv3::Domain.

get_slave_node()

virtual void b2000::Domain::get_slave_node ( std::vector< std::pair< const Node *, const Node * > > &  slave_node )

pure virtual

In a domain, coinciding nodes of different branches may be merged together. In this case, one of the nodes becomes the master node and the other node becomes the slave node.

Parameters

slave_node

A vector of (slave,master) pairs of pointers to Node instances (output).

Implemented in b2000::b2dbv3::Domain.

get_value_info()

virtual const std::vector< Element::VariableInfo > b2000::Domain::get_value_info ( ) const

pure virtual

Returns

A vector containing the type of response for each variable of the whole domain (all Element instances). See also Element::get_value_info().

Implemented in b2000::b2dbv3::Domain.

GetElementContainer()

std::vector< std::reference_wrapper< Element > > & b2000::Domain::GetElementContainer ( )

inline

Return private member domain_element_container_ holding all elements of this domain.

Returns

The element container holding b2000::Elements.

have_temperature()

virtual bool b2000::Domain::have_temperature ( ) const

pure virtual

Whether temperature conditions affecting the right-hand side through the element response (thermal expansion) are present for the current case and subcase.

Implemented in b2000::b2dbv3::Domain.

load_state()

virtual void b2000::Domain::load_state ( const std::string &  state_id )

pure virtual

Load the state of the FE domain with the identifier state_id. This function is called by the Solver instance upon restart.

Implemented in b2000::b2dbv3::Domain.

save_field() [1/3]

virtual void b2000::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< b2000::csda< double >, b2linalg::Vdense_constref > &  dof  )

pure virtual

Save a csda-valued field defined on all degrees-of-freedom. This function is called by the Solver instance.

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implemented in b2000::b2dbv3::Domain.

save_field() [2/3]

virtual void b2000::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< double, b2linalg::Vdense_constref > &  dof  )

pure virtual

Save a real-valued field defined on all degrees-of-freedom. This function is called by the Solver instance. Such fields may be, e.g. for stress analysis, the displacement field ("DISP"), or the field containing the summed-up internal forces ("RCFO").

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implemented in b2000::b2dbv3::Domain.

save_field() [3/3]

virtual void b2000::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< std::complex< double >, b2linalg::Vdense_constref > &  dof  )

pure virtual

Save a complex-valued field defined on all degrees-of-freedom. This function is called by the Solver instance.

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implemented in b2000::b2dbv3::Domain.

save_state()

virtual void b2000::Domain::save_state ( const std::string &  state_id )

pure virtual

Save the state of the FE domain with the identifier state_id. This function is called by the Solver instance.

Implemented in b2000::b2dbv3::Domain.

set_case()

virtual void b2000::Domain::set_case ( Case &  case_ )

pure virtual

Set the current Case instance. This function is called by the Model instance.

Implemented in b2000::b2dbv3::Domain.

set_model()

virtual void b2000::Domain::set_model ( Model &  model )

pure virtual

Set a reference to the Model instance. This function is called by the Model instance.

Implemented in b2000::b2dbv3::Domain.

set_subcase_id()

virtual void b2000::Domain::set_subcase_id ( const int  subcase_id_ )

pure virtual

Set the subcase ID.

Implemented in b2000::b2dbv3::Domain.

---

The documentation for this class was generated from the following files:

• model/b2domain.H
• model/b2domain.C
