b2000::ModelReductionBoundaryCondition Class Reference

#include "b2boundary_condition.H"

Inheritance diagram for b2000::ModelReductionBoundaryCondition:

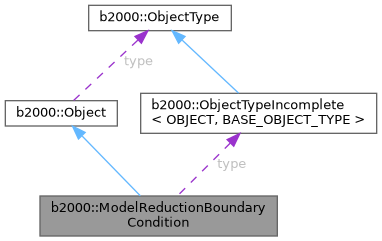

Collaboration diagram for b2000::ModelReductionBoundaryCondition:

Public Types
enum	Type { none = 0 , const_value = 1 , const_derivative = 2 , noconstant_derivative_constant_struct = 3 }

Public Member Functions
virtual Type	get_type () const =0
Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const
virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

Abstract class defining the interface for model reduction boundary conditions.

The model reduction is defined by the constraint g(v,t) = u where u is a solution vector, t is the time, v is the new solution vector in the reduced model and g is a nonlinear function from R(nb_dof) x R to R(m) where m < nb_dof is the number of unknowns in the reduced model.

Member Enumeration Documentation

Type

enum b2000::ModelReductionBoundaryCondition::Type

The different types of model reduction boundary conditions.

Enumerator
none	An empty model reduction.
const_value	g does not depend of the dof. g = d
const_derivative	The derivative of g does not depend of the dof. g = Gu d
noconstant_derivative_constant_struct	The derivative of g depends on the dof's but the structure of the sparse matrix does not change

Member Function Documentation

get_type()

virtual Type b2000::ModelReductionBoundaryCondition::get_type ( ) const

pure virtual

Returns

The type of model reduction boundary condition (how the boundary condition varies with the dof's).

---

The documentation for this class was generated from the following files:

• model/b2boundary_condition.H
• model/b2boundary_condition.C
