Inheritance diagram for b2000::TypedInitialCondition< T >:

[legend]

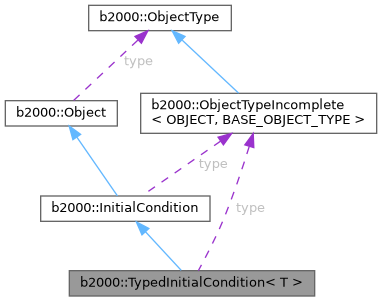

Collaboration diagram for b2000::TypedInitialCondition< T >:

[legend]

Public Member Functions
virtual bool	get_dynamic_initial_condition_value (b2linalg::Matrix< double, b2linalg::Mrectangle > &dof, double &time, int &stage, std::string &domain_state_id)=0

virtual bool	get_static_initial_condition_value (b2linalg::Vector< double, b2linalg::Vdense_ref > dof, double &time, int &stage, std::string &domain_state_id)

Public Member Functions inherited from b2000::InitialCondition
virtual void	set_model (Model &model)=0

virtual void	set_case (Case &case_)=0

Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const

virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

template<typename T>
class b2000::TypedInitialCondition< T >

Implementations should derive this class.

Member Function Documentation

template<typename T >

virtual bool b2000::TypedInitialCondition< T >::get_dynamic_initial_condition_value	(	b2linalg::Matrix< double, b2linalg::Mrectangle > &	dof,
		double &	time,
		int &	stage,
		std::string &	domain_state_id
	)

pure virtual

Compute the initial conditions for dynamic analysis. This function is called by the dynamic Solver instance during initialization.

Parameters

dof	The initial values of all degrees-of-freedom in the global reference frame, and their time-derivatives (matrix, output).
time	The time parameter (output). For restart, the time parameter will be positive, else 0.
stage	The stage number (output).
domain_state_id	The domain state ID for restart (output). If set to a non-empty string, it identifies path-dependent Element and ElementProperty states, which have been stored previously on database and which will be loaded with Domain::load_state().

template<typename T >

virtual bool b2000::TypedInitialCondition< T >::get_static_initial_condition_value	(	b2linalg::Vector< double, b2linalg::Vdense_ref >	dof,
		double &	time,
		int &	stage,
		std::string &	domain_state_id
	)

inlinevirtual

Compute the initial conditions for static analysis. This function is called by the static Solver instance during initialization.

Parameters

dof	The initial values of all degrees-of-freedom in the global reference frame (vector, output).
time	The time parameter (output). For restart, the time parameter will be positive, else 0.
stage	The stage number (output).
domain_state_id	The domain state ID for restart (output). If set to a non-empty string, it identifies path-dependent Element and ElementProperty states, which have been stored previously on database and which will be loaded with Domain::load_state().

The documentation for this class was generated from the following file:

	b2api B2000++ API Reference Manual, VERSION 4.6
